D/R 8700018

REMY INTERNATIONAL INC.

35SI Hp Pad Mount Alternator Reman

$145.00

$471.24

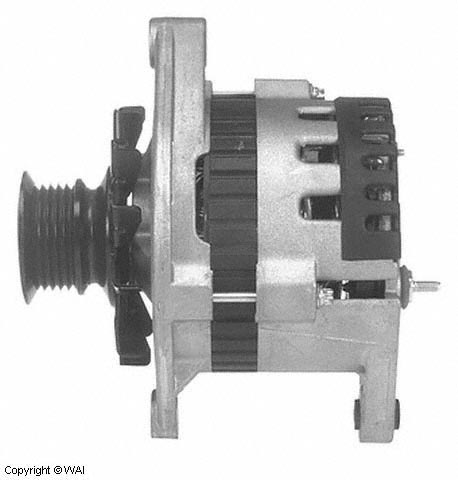

D/R 8700018 : 35SI Hp Pad Mount Alternator Reman for large image A1906_S

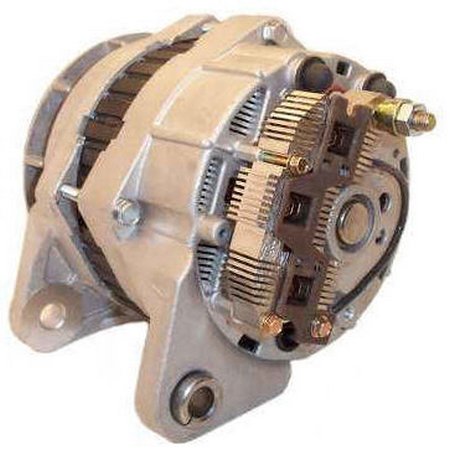

D/R 8700018 : 35SI Hp Pad Mount Alternator Reman for large image DR8700018_1

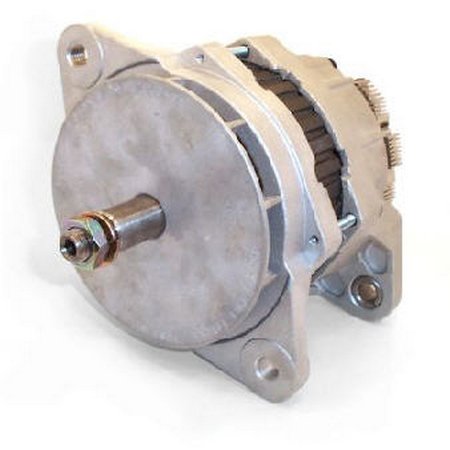

D/R 8700018 : 35SI Hp Pad Mount Alternator Reman for large image DR8700018_2

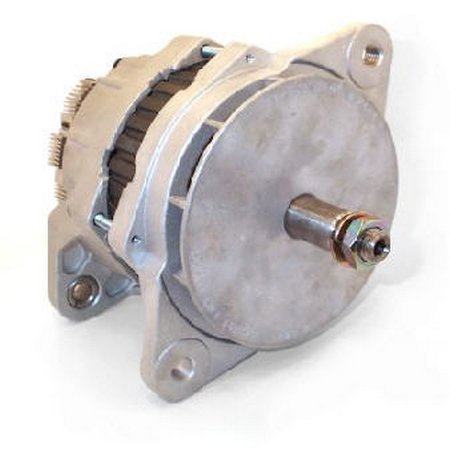

D/R 8700018 : 35SI Hp Pad Mount Alternator Reman for large image DR8700018_3

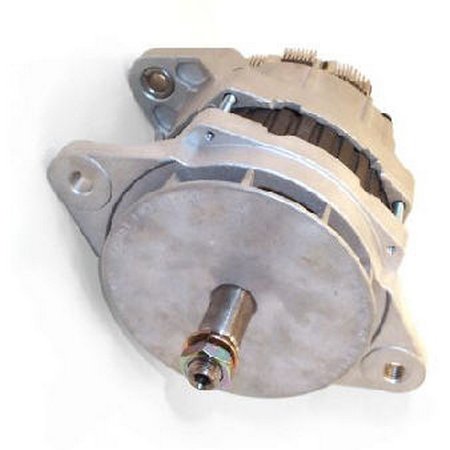

D/R 8700018 : 35SI Hp Pad Mount Alternator Reman for large image DR8700018_4

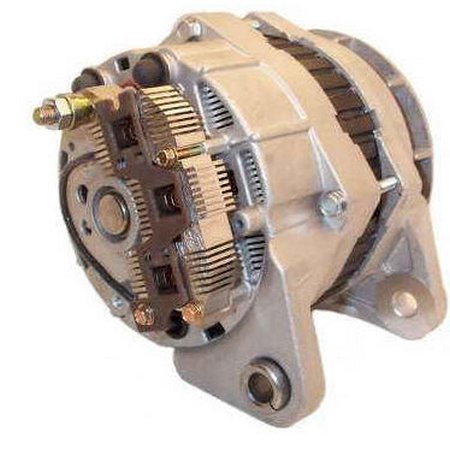

D/R 8700018 : 35SI Hp Pad Mount Alternator Reman for large image DR8700018_5

'Mouse over' image(s) for larger view

Short Note:
TOYOTA CAMRY 2.4L 2004-06 (USA BUILT)
TOYOTA SOLARA 2.4L 2004-06
7-GROOVE PULLEY; 60mm OD
NOTE: SQUARE "S-IG-M-L" PLUG
SEE: 290-5155A (HIGHLANDER VERSION)
SEE: 290-5153 (RAV4 2.4L VERSION)

Long Note:
This is a 104210 Series Denso Alternator for the 2004-On Toyota Camry and Solara With the 2.4L Engine. This Unit Has a Square Plug ("S-IG-M-L"), the Top Ear is at About 9:00, the Plug is at 2:00 (Side of SRE), the B+ Stud is at 3:00 (Side of SRE), and This Unit Has a 7-Groove Conventional Pulley. This Unit Mounts Like the Earlier 13958. There is an Unthreaded (Originally Thought to Be Threaded) Mounting Hole at 5:00 That is Used to Hold the Wiring Loom to the Alternator. The 11195 Looks Identical to the 11034 Except Using a Clutch-Style Pulley.

BOSCH REMAN AL3317X
EMS 11034N
NIPPONDENSO 104210-3880
TOYOTA 27060-0H100
TSA 11034N
WAI 11034N
WAI (OLD) 1-2594-01ND-3
WILSON 90-29-5510
